Eigenschaften

Technische Daten

Model Number: HZ

Input Voltage: 12.0Vdc / 24.0Vdc / 48.0Vdc

Output Voltage: 100-110-120Vac / 220-230-240Vac

Output Current: 150VAC

Output Frequency: 50 Hz/60Hz

Inverter Efficiency: >95%

Type: DC/AC Inverters

Size: 440*370*175mm

Warranty: 2 year

Grundinformation

Model Number: HZ

Zahlung und Versand AGB

Produkt-Beschreibung

Products Description

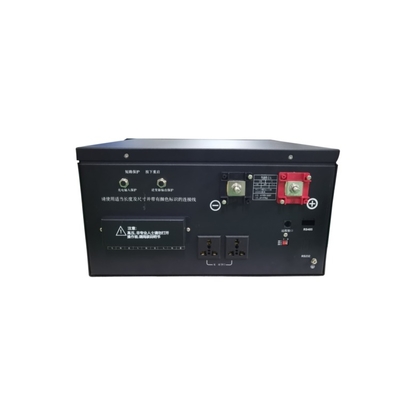

HZ series-Power frequency frame inverter

product description:

The industrial frequency rack-mounted inverter power supply combines the advantages and disadvantages of the current inverter power supply to upgrade and optimize,Comprehensive improvement, and the use of industrial frequency inverter circuit design, with high conversion efficiency,Features of high stability, ultra-low loss, ultra-strong load capacity, and ultra-strong anti-interference ability; it can be used for commercial,Provide reliable sine wave AC power supply for industrial, civil, and telecommunications equipment. Suitable for DC voltage of DC24V,DC48V applications are mainly used in air conditioners, TVs, cash registers, refrigerators, washing machines, computers,Various loads such as powertools, lighting, industrial equipment, and telecommunication equipment room equipment.

Product features:

1.Pure sine wave output; does not harm electrical equipment, effectively protects the load; comes with UPS conversion function, high-speed conversion,The conversion time is less than 5ms; to ensure the uninterrupted power consumption; 2. CPU management, intelligent control, modular composition, more convenient after-sales maintenance; 3. LED+LCD display can display all operating parameters of the machine intuitively; 4. High conversion efficiency, 90-95% conversion efficiency in a half-load environment; more than 99% in a mains environment;Low altitude consumption, in the energy-saving mode, the loss is between 1W~6W, high efficiency and energy saving; 5.Increase city power auxiliary charging function; powerful charging function, three-stage intelligent charging, which can be of different typesRechargeable batteries, such as sealed lead-acid batteries, open-type lead-acid batteries, gel batteries, etc. 8 types of batteries. 6. Intelligent temperature control fan, more energy saving, longer life; 7. The load capacity and impact resistance of this series of products are super strong, such as driving any load such as water pumps, air conditioners, refrigerators, etc.; 8.Adopting power frequency circuit design and using brand new top electronic materials, the system has good stability, low failure rate and long life.Generally, the normal service life can reach more than eight years; 9.Perfect protection function: low voltage protection, high voltage protection, high temperature protection, short circuit protection, leakage protection,Over-current protection, overload protection, low-voltage recovery, intelligent temperature control fan, fault alarm, fault self-recovery and other comprehensive protection; 10.Power frequency structure design, anti-harmonic interference, free from inductive load harmonic interference, safer and more stable; 11. Frequency 50HZ/60HZ can be selected, AC priority/DC priority can be selected, fault information display, More comprehensive functions, more convenient to use; copper transformer, copper battery terminal post, high current terminal,All copper wire, high-density three-proof paint circuit board, double-ball DC silent fan, large LCD display, All use new top electronic accessories, high-end packaging, safe, efficient and high-end.

	Model HZ	1KW	2KW	3KW	4KW	5KW	6KW	8KW	10KW
12KW	Inverter Output	Continuous Output Power	1000W	2000W	3000W	4000W	5000W	6000W	8000W
10000W	12000W		Surge Rating(20ms)	3KW	6KW	9KW	12KW	15KW	18KW
24KW	30KW	36KW

Output Waveform	Pure Sine wave/Same as input(Bypass Mode)
Nominal Efficiency	>88%(Peak)
Line Mode Efficiency	>95%
Power Factor	0.9-1.0
Nominal Output Voltage rms	100-110-120Vac / 220-230-240Vac
Output Voltage Regulation	±10% RMS
Output Frequency	50Hz ± 0.3Hz/60Hz ± 0.3Hz
Short Circuit Protection	Yes( 1sec after fault )
Typical transfer Time	10ms(Max)
THD	< 10%
Nominal Input Voltage	12.0Vdc / 24.0Vdc / 48.0Vdc	24.0Vdc / 48.0Vdc	48.0Vdc

Minimum Start Voltage

10.0Vdc / 10.5Vdc for 12Vdc Mode

*2 for 24Vdc, *4 for 48Vdc;

Low Battery Alarm

10.5Vdc / 11.0Vdc for 12Vdc Mode

Low Battery Trip

10.0Vdc / 10.5Vdc for 12Vdc Mode

High Voltage Alarm

16.0Vdc for 12Vdc Mode

Low Battery voltage recover

15.5Vdc for 12Vdc Mode

Idle Consumption-Search Mode

< 25 W when Power Saver On.(Refer to Table )

Output Voltage

Depends on battery type (Refer to Table 2.5.2)

Charger Breaker Rating

10A

20A

30A

40A

50A

80A

Max Charge Power Rate

1/3 Rating Power (Refer to Table 2.5.3)

Battery Initial Voltage for Start	10-15.7Vdc for 12Vdc Mode	2 for 24Vdc, 4 for 48Vdc;
Over Charge Protection S.D.	15.7Vdc for 12Vdc Mode
Battery Temperature Sensor (Optional)	Yes(Refer to the table ) Variances in Charging Voltage & S.D Voltage Base on the Battery Temperature.
