Startseite /Produkte/Frequenz-Antriebs-Inverter/Vector Control 3Hp Solar Water Pump DC Solar AC 220v 380v MPPT Low Frequency Inverter

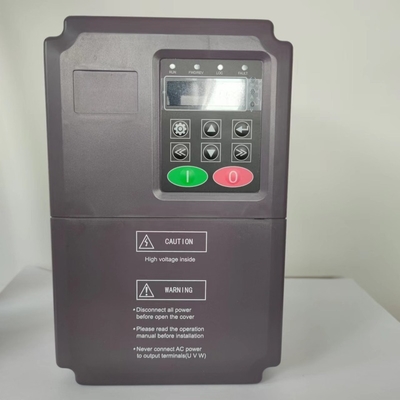

Vector Control 3Hp Solar Water Pump DC Solar AC 220v 380v MPPT Low Frequency Inverter

1 piece
MOQ
$95.00(>=1 pieces)
Preis
Vector Control 3Hp Solar Water Pump DC Solar AC 220v 380v MPPT Low Frequency Inverter
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Features: Vector control
Model Number: QB600
Input Voltage: 250-800v
Output Voltage: 440v, 0-400V
Output Current: 9a
Output Frequency: 50-60hz
Output Type: Single, Triple
Size: 410*310*280mm
Type: DC/DC Converters, DC/AC Inverters
Inverter Efficiency: 95%
Certificate: CE
Warranty: 180 months, 18Month
Weight: 7.4kgs
Display: Digital
application: industry
Grundinformation
Zertifizierung: CE
Model Number: QB600
Zahlung und Versand AGB
Supply Ability: 10000 Acre/Acres per Month
Produkt-Beschreibung
Product Description
Product Description
Brand
ADVANCE TOGETHER
Type
DC/AC Inverters
Output Type
Single/Triple
Output Voltage
0-400V
Output Frequency
50/60HZ
Certificate
other
Warranty
18Month
Display
Digital
Features
Vector control
application
industry

AC Drive Model
Power Capacity (kVA)
Input Current (A)
Output Current (A)
Adaptabl Motor (kW)
Three-phase 380 V, 50/60 Hz
3300-0R7G-4
1.5
3.4
2.1
0.75
3300-1R5G-4
3
5
3.8
1. 5
3300-2R2G-4
4
5.8
5.1
2.2
3300-004G-4
5.9
10.5
9
4
3300-5R5G-4
8.9
14.6
13
5.5
3300-7R5G-4
11
20.5
17
7.5
3300-011G-4
17
26
25
11
3300-015G-4
21
35
32
15
3300-018G-4
24
38.5
37
18.5
3300-022G-4
30
46.5
45
22
3300-030G-4
40
62
60
30
3300-037G-4
57
76
75
37
3300-045G-4
69
92
91
45
3300-055G-4
85
113
112
55
3300-075G-4
114
157
150
75
3300-090G-4
134
180
176
90
Item
Specifications










Standard functions
Maximum frequency
• Vector control: 0–300 Hz
• V/F control: 0–320 Hz

Carrier frequency
0.5–16 kHz
The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution
Digital setting: 0.01 Hz
Analog setting: maximum frequency x 0.025%

Control mode
• Sensorless flux vector control (SFVC)
• Closed-loop vector control (CLVC)
• Voltage/Frequency (V/F) control

Startup torque
• G type: 0.5 Hz/150% (SFVC); 0 Hz/180% (CLVC)
• P type: 0.5 Hz/100%
Speed range
1:100 (SFVC)
1:1000 (CLVC)
Speed stability accuracy
• ± 0.5% (SFVC)
• ± 0.02% (CLVC)
Torque control accuracy
± 5% (CLVC)
