Startseite /Produkte/Solarwasser-Pumpen-Inverter/Hybrid Hober 2.2kw 3HP HSPH2200H MPPT DC and AC Input Solar Pump Inverter for Farm Irrigation 58*33*28CM

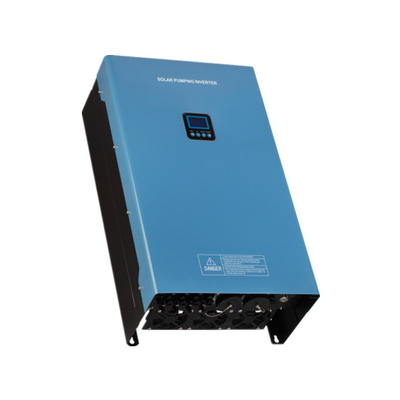

Hybrid Hober 2.2kw 3HP HSPH2200H MPPT DC and AC Input Solar Pump Inverter for Farm Irrigation 58*33*28CM

1.0 Sets
MOQ
$520.00(1 - 49 Sets) $360.00(>=50 Sets)
Preis
Hybrid Hober 2.2kw 3HP HSPH2200H MPPT DC and AC Input Solar Pump Inverter for Farm Irrigation 58*33*28CM
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Model Number: HSPH2200H
Output Current: 10.5A
Output Frequency: 50/60HZ
Output Type: AC
Certificate: CE,IEC,TUV,ISO
Warranty: 24 months
Rated power: 2.2KW 3Hp
Output Voltage: 380V
Size: 58*33*28CM
Weight: 14kg
Service: GPRS remote control
Protection: Over temperature, Over voltage
Technology: Second generation of MPPT
Operation: Fully automatic operation
Display: LCD/LED
MPPT( maximum power point tracking): YES
Grundinformation
Zertifizierung: CE,IEC,TUV,ISO
Model Number: HSPH2200H
Zahlung und Versand AGB
Packaging Details: Carton or wooden case
Supply Ability: 5000 Set/Sets per Month
Produkt-Beschreibung
Product Description
Specification
Model
HSPH2200H


DC Input
Rated Power
2200W
Brand Name
Min Vmp DC Input Voltage
400v
Model Number
Max Voc DC Input Voltage
900V
Output Current
MPPT high efficiency  Vmp voltage
≥500V (Only Solar), ≥560 V (Hybrid Power)

Hybrid AC/Generator Input
Voltage
3 Phase 380/400/440V
Max Input Current
7 A
Hybrid Mode
Y


AC Output
Rateed Power AC Voltage 3 phase
380V
Output Type
Rateed Power AC Current
10.5A
Certificate
Inverter efficiency
99%
Warranty
Output frequency
0~50/60HZ







Others
Water Level Sensor (Water of Well)
Yes
Output Voltage
Water Level Sensor(Water of tank)
Yes
Size
AC Switcher
Yes
Weight
GPRS Monitor &Controller
Optional
Service



Protection type
IP65 DC input Low/Over Voltage
Protection

DC Input Anti-Reverse
Technology

Output overload,Output short circuit
Operation

Over temperature
Display

Sensor of Water Empty/Full
Special

Lighting



Operration Limit
Noise(1 m)
 <50dB
Operation environment temperature
 -10 to 60 Degree
Humidity
15%-+95%RH
Using altitude(m)
<4000Altitude higher than 1000m pls consider to use less loads
Others
Prohibiting the installation location:direct sunlight,thicking dust,corrosive gas or oil mist,flammable.etc



Adapted Pump
      Support Pump's HP
 ≤3HP
Rated Power(W)
≤2200W
 Rated Frequency(Hz)
 0~50/60
Rated Voltage
AC-380V-3 phase
Application

Solar water Pumping System

Solar water Pumping System is consist of PV panel,pumping inverter/controller,AC/DC pump .

Solar Pump Inverter are conver the DC power of the PV array to 3ph-AC power
and drives the pump,according to the power of PV array output,regulates output frequency and let PV output max power at all time.
Company Profile
Foshan Hober Electric Co.,LTD (Abbr. Hober) is a professional manufacturer of solar pump inverter/controller in the IEC standards and certified to the ISO9001 quality management system. As a leading supplier with outstanding products and services, Hober has a strong Research & Development and technical service team which focus on innovation and make us be the leader of latest technology. We provide not only high cost-effective products but also integrated energy solutions. Well-trained engineers are ready to offer customers all-around back-ups including professional solutions, technical trainings and service support. In the past 10 years, Hober solar products and solutions are used in over 50 countries and areas, the stable operation and excellent performance are universally recognized by users around the world. In the next decade, Hober will continue to take " Innovation, Excellence, Quality, Service " as our business philosophy and strive to be a responsible and professional enterprise with superior competitiveness.
Packing & Delivery
FAQ
1. who are we?
We are based in Guangdong, China, start from 2019,sell to Mid East(30.00%),Africa(30.00%),South America(10.00%),Domestic
Market(10.00%),Southeast Asia(10.00%),North America(5.00%),Eastern Asia(2.00%),Central America(2.00%),South Asia(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Solar Pump System,Solar Pump,Solar Pump Inverter,Solar Aeration system,Portable Solar Pump System

4. why should you buy from us not from other suppliers?
Professional Manufacturer and Solution provider
Pay more attention to R&D
OEM/ODM/OBM service available Quick response for after-sales service
Fast delivery

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese

6.Shiping time
China Post (10-30 working days)
EMS (7-15 working days)
DHL (7-15 working days)
UPS (7-15 working days)
•We will ship to a physical address only, please provide physical address and telephone.
number for Expedite service
•The most reliable, affordable way of shipping method depends on your address.
•Online tracking number will be emailed to buyer through email.
•We are unable to take any responsibility for any custom delay.
