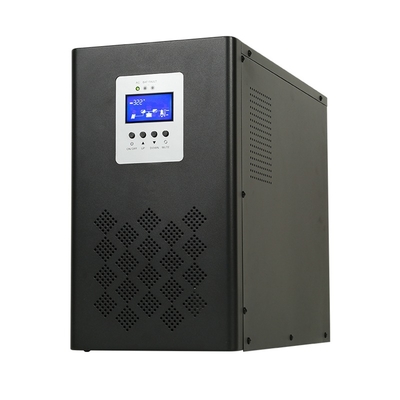

MODEL | LPI-5KVA | ||
Rated power | 3500W | ||
Battery voltage | 48VDC | ||
Net weight | 18KG | ||
Grost weight | 19KG | ||
Dimension(L*W*H) | 470*220*385(mm) | ||
Solar power Controller | Solar rated voltage | 72V | |
Maximum input voltage | 84V | ||
Charging voltage | 54V | ||
Charging current | 50A | ||
Protection type | Solar cells, anti-anti-charge protection,battery open-circuit protection,battery reversal protection | ||
inverter | AC luput voltage range(VAC) | 110V/120V/127V(+20%,-20%) | |
Iuput frequency(Hz) | 45-65Hz | ||
Output voltage range(VAC) | 110V/120V/127V(+2%,-2%) | ||
Utility output voltage range | constant voltage output 110V/120V/127VAC±10% | ||
Output frequency (Hz) | 50/60±1% | ||
Utility output frequency | 50Hz/ 60Hz automatic tracking | ||
Output wavefrom | Pure sine wave | ||
Efficiency | ≥85% | ||
THD | ≤3% | ||
Transfer time(ms) | ≤4ms | ||
Overload protection | rated power >110%; >130%, 10S power off; >150%, 0.6s power off | ||
Temperature protection | ≥85℃ alarm , ≥90℃ Shutdown the machine | ||
Battery protection | Automatic detection and discharge protection, overcharge protection, intelligent management | ||
Cooling method | Automatic detection of wind cooling ≤42℃ fan rotating heat dissipation, ≥45°C fan high rotating heat dissipation |
